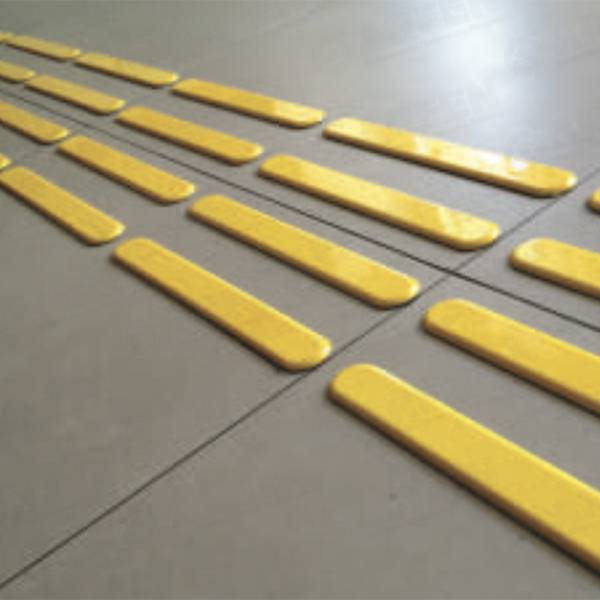

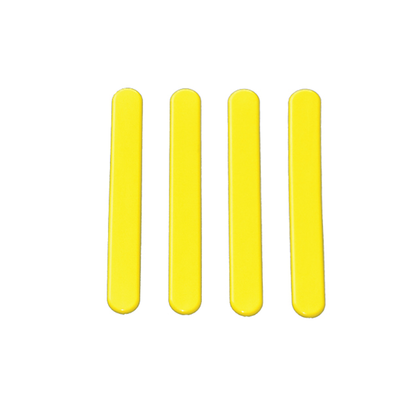

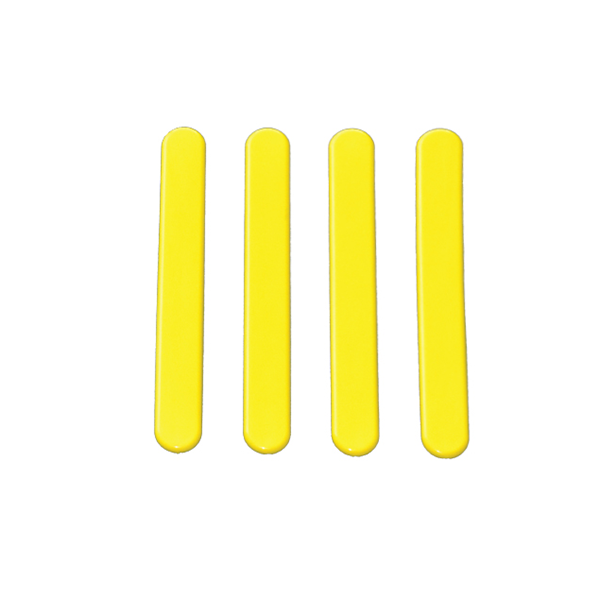

Tactile TPU Directional Bar 28cm - Ground Surface Indicators

Direction indicating tactile bars for pedestrian assistance. They are easily installed into most substrates to lead in to Hazard indicators. A very durable & cost effective product and simple drill and press installation, they are a versatile choice for any application.

Features

• Easy to install
• Extremely hard wearing and durable
• Slip resistance
• Has high luminance contrast
• UV stabilised material to protect against the sun
• Can be installed on most substrates including concrete, asphalt, tiles, pavers, terrazzo, timber, carpet, vinyl and glass
• Compliant with Australian standards and codes

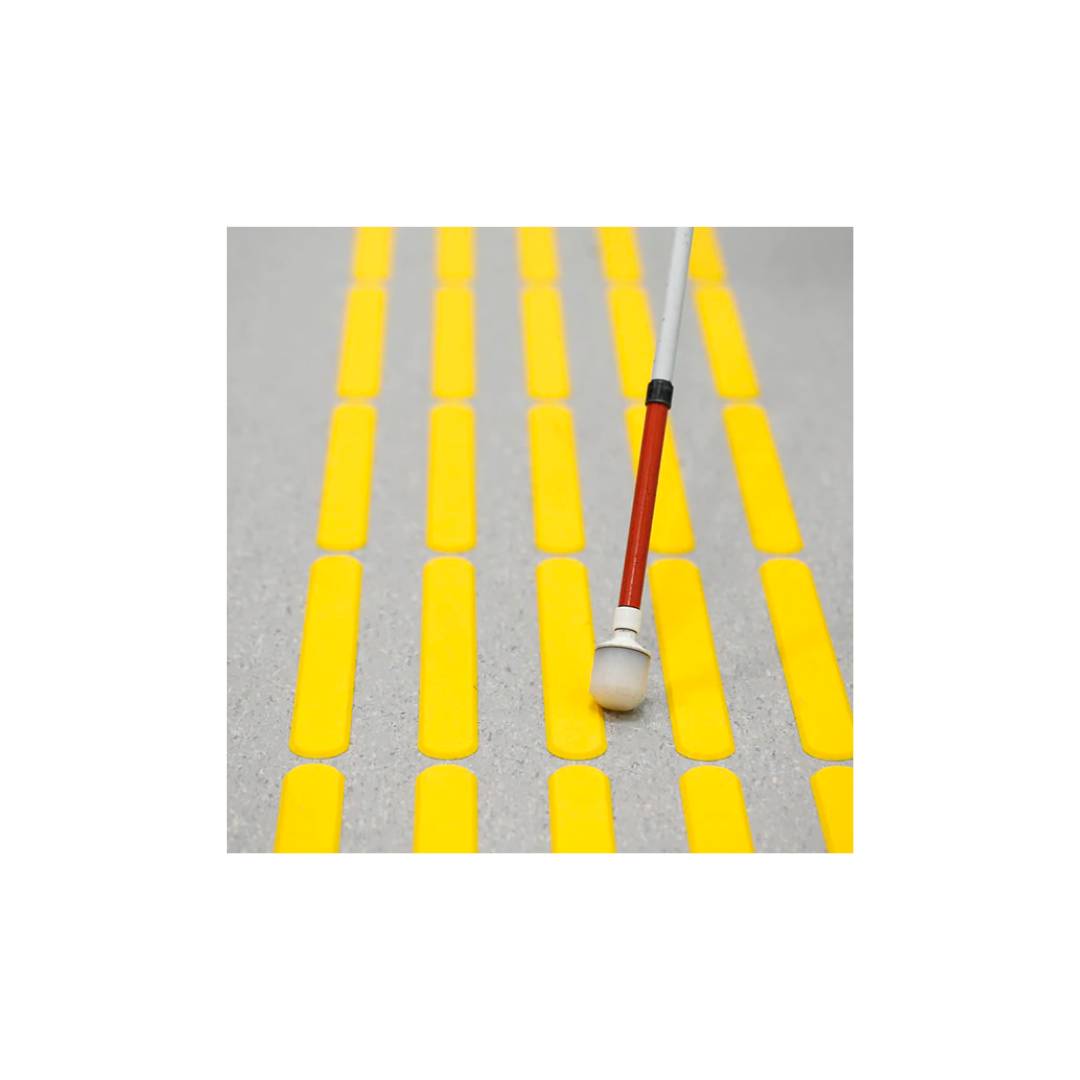

The sensible surfaces are designed for the effective use of public spaces for visually impaired or low vision individuals.
First used in Japan in 1965, tactile paving is used all over the world to help visually impaired people to travel alone.

Tactile paving should be designed and implemented in a simple, logical and consistent order.
Traces should be easily distinguished from their surroundings and adjacent surfaces by visual contrasts and elevated sensible profiles.
It should also be easily distinguishable from each other at stops and walking areas.

According to TS ISO 23599, the dome and cones are parallel to the main direction of movement or 45 degrees cross-grid and also heights should be 4 to 5 mm.

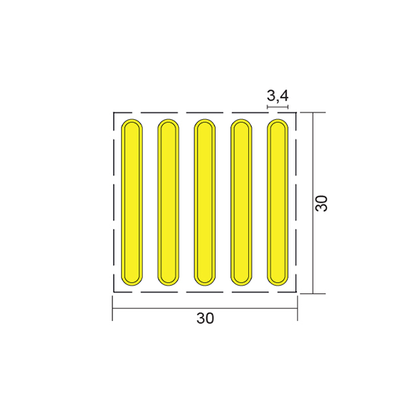

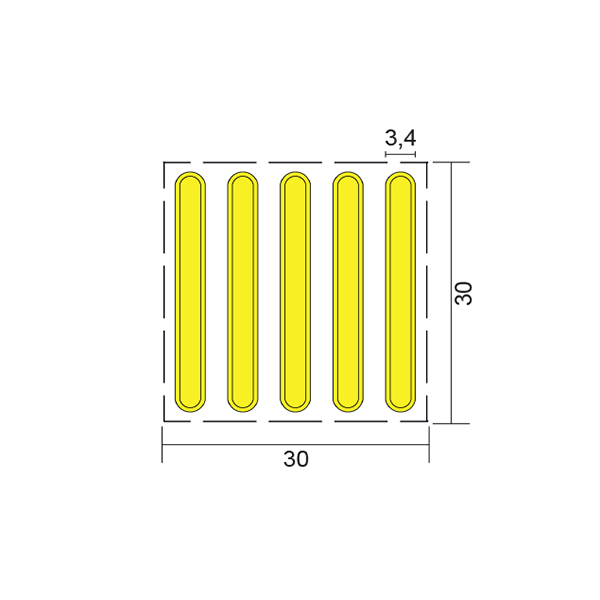

28 cm Single TPU Tactile Paving Guide Surface With Self-Adhesive.
