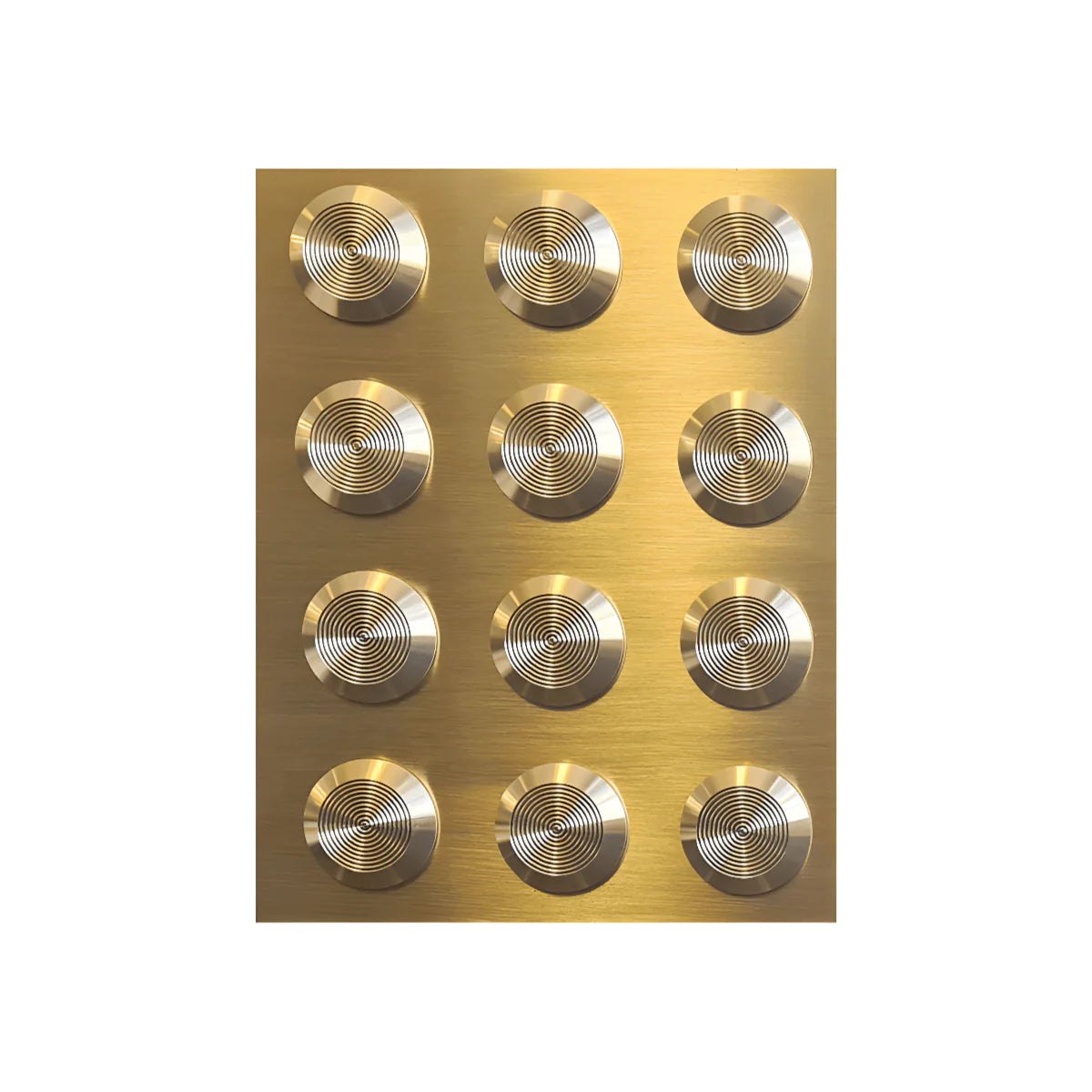

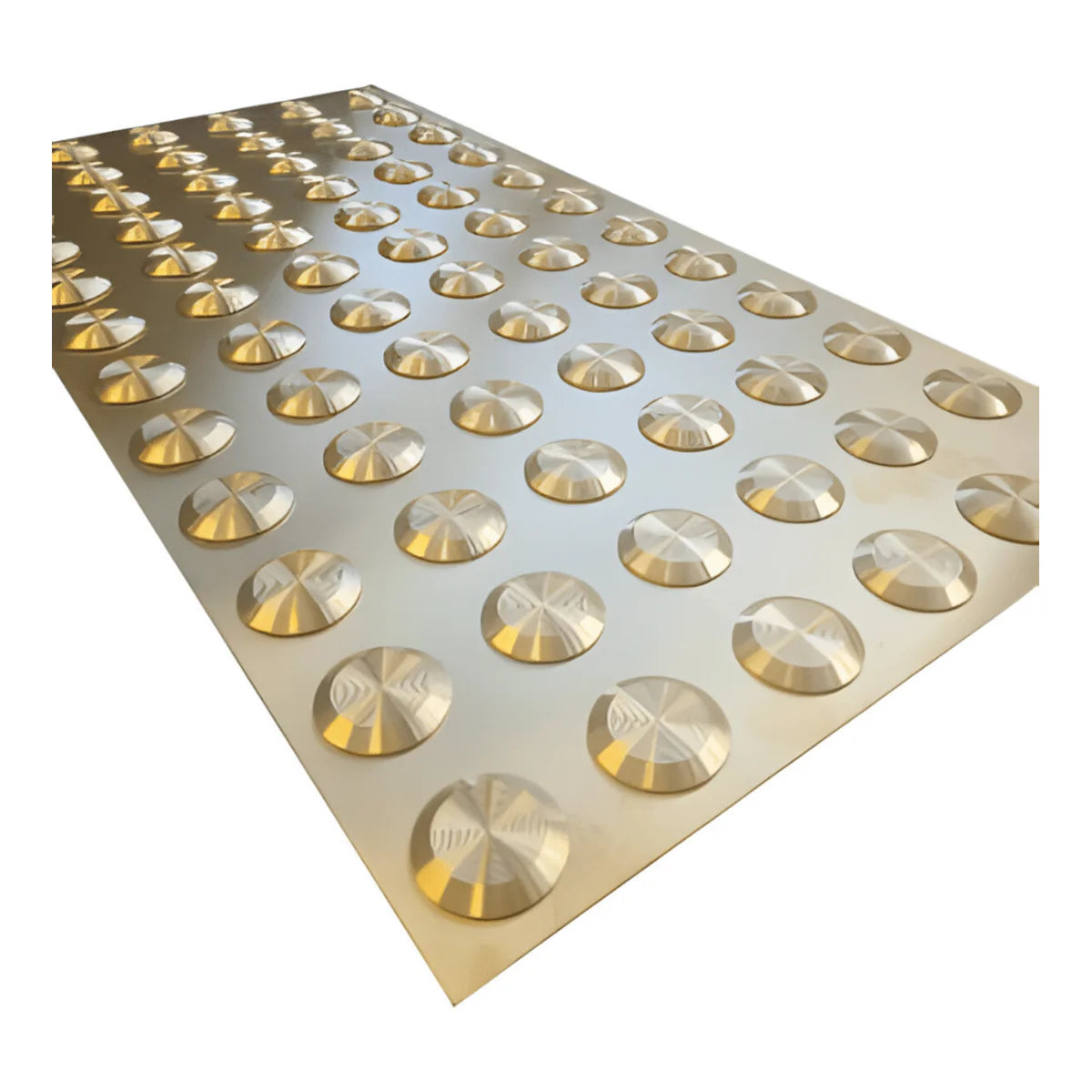

Tactile Plate – Warning Integrated Brass 300 mm × 600 mm
Tactile Plate – Warning Integrated Brass 300 mm × 600 mm
Regular price
$8.50 AUD
Regular price
Sale price
$8.50 AUD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Overview
Elevate safety and aesthetics in one step. Our 300 × 600 mm Warning Integrated Brass Plate delivers P5 slip resistance and 30 % luminance contrast while adding timeless warmth to marble, granite or terrazzo entries. CNC-machined from 3 mm solid brass, it meets AS 1428.4.1 for tactile ground-surface indicators—perfect for boutique hotels, civic buildings and premium retail.
Key Features
- Solid 3 mm Brass – non-plated, marine-grade alloy for unrivalled durability.
- Integrated Stud Array – factory-pressed domes maintain strict spacing; no loose studs.
- Pre-Drilled & Countersunk – accepts 6 g SS screws or anchors; epoxy-bond compatible.
- Weather & Salt-Spray Resistant – ideal for coastal or outdoor forecourts.
- Low-Maintenance Satin Finish – ages to a dignified patina; polish to restore shine.
Technical Specifications
| Attribute | Value |
|---|---|
| Plate Size | 300 mm × 600 mm |
| Thickness | 3 mm solid brass |
| Stud Height / Dia. | 4.5 mm / 35 mm (AS 1428 compliant) |
| Slip Rating | P5 (AS 4586 Wet Pendulum) |
| Luminance Contrast | ≥ 30 % against typical substrates |
| Fixing Options | M5 CSK screws (supplied) or epoxy |
| Operating Temp. | -10 °C to +80 °C |
| Warranty | 10 years structural & colour |
Installation & Care
- Surface Prep: degrease and lightly abrade substrate.
- Fixing: torque screws to 6 Nm or apply high-bond epoxy.
- Cleaning: avoid acidic cleaners; use pH-neutral detergent or low-pressure wash.
Need Something Custom?
Our engineering team can tailor profiles, colours, and cut-to-length options for your project. Tell us what you need and we’ll scope it within 24 hours.
