Installation Template – Flat-Back TGSI 300 mm × 300 mm
Installation Template – Flat-Back TGSI 300 mm × 300 mm
Regular price
$8.50 AUD
Regular price
Sale price
$8.50 AUD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Overview

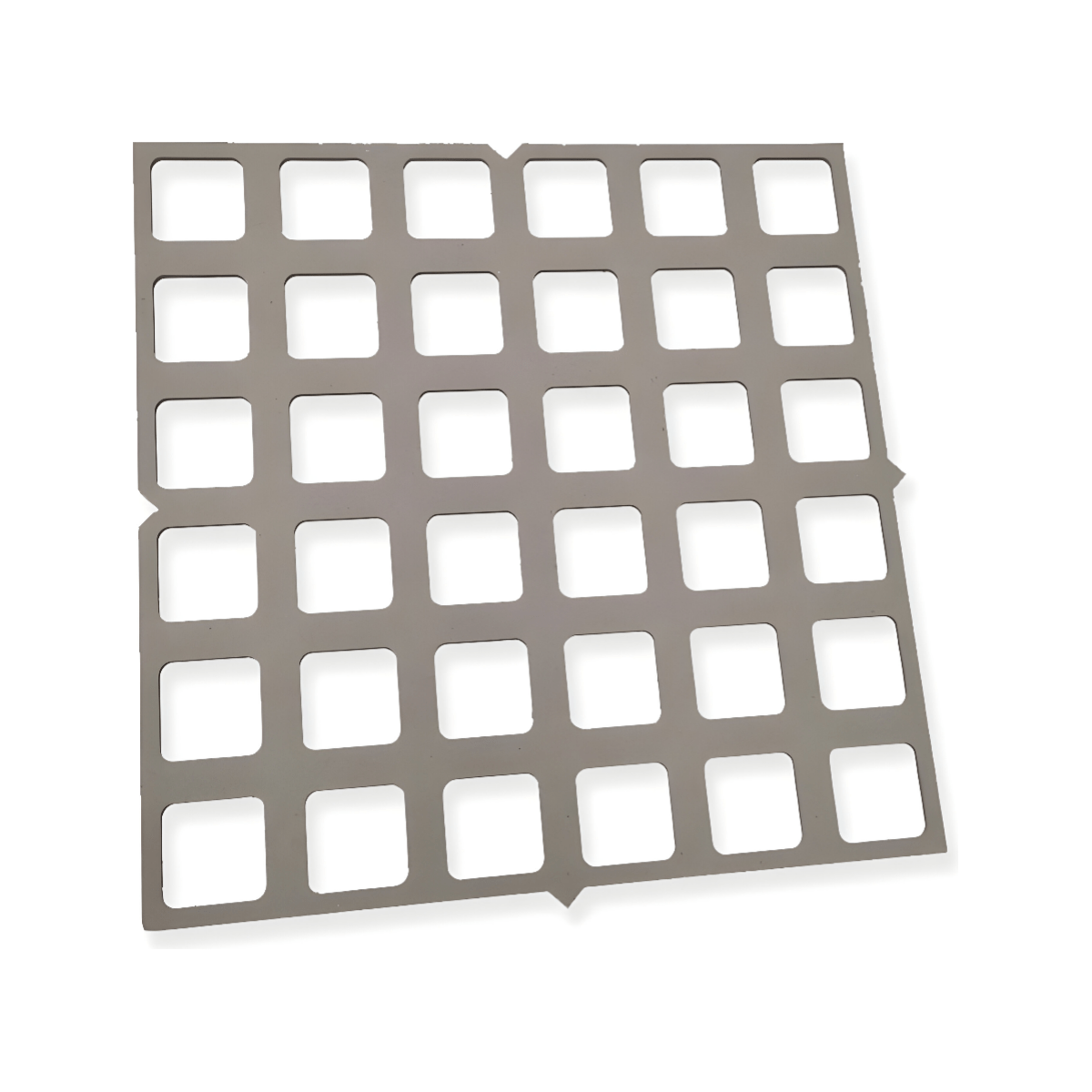

Achieve perfect stud alignment every time with our 300 × 300 mm Flat-Back TGSI Installation Template. Designed by Tactile Systems Australia, this rugged ABS jig clips together to cover any walkway width—guaranteeing AS 1428.4.1 spacing and saving hours on site prep.
Key Features
- Precision Grid – moulded cavities locate each stud exactly 50 mm apart for hazard or directional layouts.
- Interlocking Edges – templates snap together to cover long runs without drift.
- Durable ABS – UV-stabilised, solvent-resistant plastic built for harsh job-site handling.
- Dual-Purpose – one side for Hazard (dot) pattern, flip for Directional (strip) pattern.
- Broom-Clean Removal – lift away once adhesive cures—no surface residue.
Technical Specifications
| Attribute | Value |
|---|---|

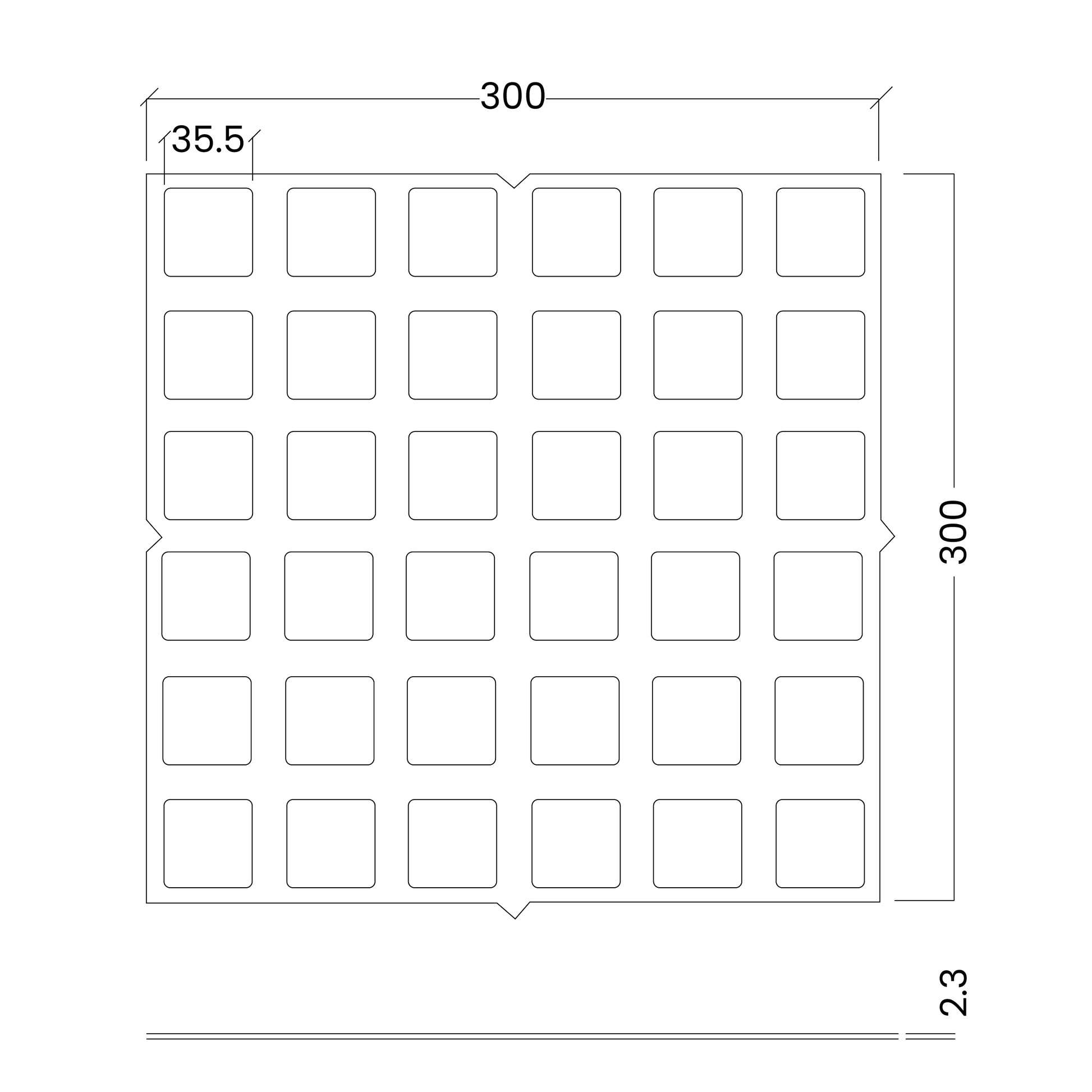

| Template Size | 300 mm × 300 mm |
| Material | UV-stabilised ABS plastic |
| Compatibility | Stainless-Steel / Brass / Poly studs & TGSI |
| Stud Pitch (Hazard) | 50 mm (centre-to-centre) |
| Strip Pitch (Directional) | 50 mm (centre-to-centre) |
| Compliance | AS 1428.4.1-2021 design spacing |
| Re-usability | >100 installs with proper care |
Installation Notes
- Sweep surface and tape template in place.
- Drill or mark holes / adhesive spots through cavities.
- Fix studs, allow adhesive to cure, then lift template.
- Jet-wash template clean—store flat.
Need Something Custom?
Our engineering team can tailor profiles, colours, and cut-to-length options for your project. Tell us what you need and we’ll scope it within 24 hours.
